Parts of a Sailboat
Learn the essential vocabulary every sailor needs to know
The Hull
The hull is the main body of the boat — the watertight shell that keeps you afloat. It's the most fundamental part of any vessel.

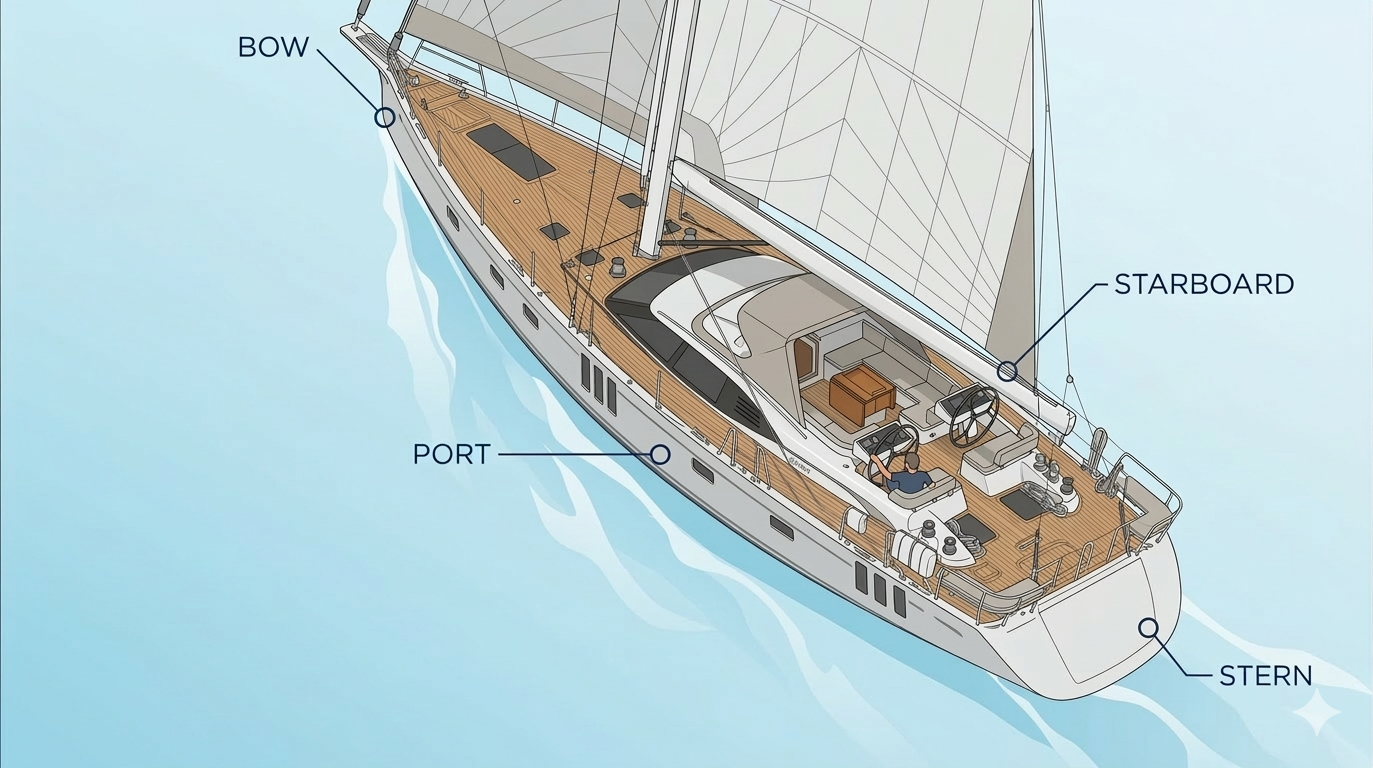

The front of the hull is called the bow, and the back is the stern. When you face the bow, the left side is called port and the right side is starboard.
An easy way to remember port vs. starboard: port and left both have four letters.
When facing forward on a sailboat, which side is port?
What is the main body of the boat called?
Above the Deck
The flat top surface you stand on is the deck. The enclosed area below deck where you can sleep and shelter is called the cabin.
The cockpit is the recessed area in the deck where the helmsperson steers from. The tiller or wheel controls the rudder for steering.
In a typical small sailboat cockpit, you'll find the tiller (or wheel), mainsheet, jib sheets, and the companionway hatch leading below deck.
Where does the helmsperson steer from?
What controls the rudder on a sailboat?
The Rig
The mast is the tall vertical pole that holds the sails up. It's supported by standing rigging — wire cables called shrouds (side supports) and stays (fore-and-aft supports).
The boom is the horizontal pole attached to the bottom of the mast that holds the foot of the mainsail. Watch your head — the boom swings when you tack or jibe!
The boom can swing across suddenly during a jibe. Always be aware of its position and keep your head low when it moves.
What is the purpose of shrouds?
What is the boom?
The Sails
Most sailboats carry at least two sails. The mainsail is the larger sail attached to the mast and boom. The jib (or headsail) is the forward sail attached to the forestay.
The ropes that control the sails are called sheets. The mainsheet controls the mainsail, and the jib sheets control the jib. Despite the name, sheets are ropes, not the sails themselves!
In sailing, almost every rope has a specific name based on its function. A rope only becomes a sheet when it controls a sail, and a halyard when it raises one.
What is the rope used to control the angle of the mainsail called?
What is a halyard?
Below the Waterline
The keel is a heavy fin extending below the hull. It serves two purposes: it prevents the boat from sliding sideways in the wind, and its weight keeps the boat from tipping over.
The rudder is the flat blade at the stern, controlled by the tiller or wheel. It directs water flow to steer the boat.
-
Inspect the keel
Before launching, check the keel for damage or marine growth that could affect performance.
-
Check the rudder
Ensure the rudder moves freely from side to side and the tiller/wheel connection is secure.
-
Verify the draft
Know your keel draft (depth below waterline) to avoid running aground in shallow water.
What are the two main functions of a keel?
What does the rudder do?
Summary
A sailboat has four main directional references: bow (front), stern (back), port (left), and starboard (right).
The hull, deck, mast, boom, sails, keel, and rudder are the primary components every sailor must know.
Standing rigging (shrouds and stays) supports the mast; running rigging (sheets and halyards) controls and raises the sails.
Key Terms
- Bow
- The front of the boat
- Stern
- The back of the boat
- Port
- The left side when facing forward
- Starboard
- The right side when facing forward
- Hull
- The main watertight body of the boat
- Mast
- Vertical pole supporting the sails
- Boom
- Horizontal pole holding the foot of the mainsail
- Keel
- Heavy fin below the hull that prevents leeway and provides ballast
- Rudder
- Steering blade at the stern, controlled by tiller or wheel
- Sheet
- A rope used to control a sail's angle
- Halyard
- A rope used to raise or lower a sail
- Shroud
- Side-support wire cable that holds the mast up
- Standing rigging
- Fixed wires that support the mast (shrouds and stays)
- Running rigging
- Moveable ropes used to raise and control sails (halyards and sheets)
Parts of a Sailboat — Quiz
What is the front of a sailboat called?
Which term describes the LEFT side of the boat when facing forward?
What is the difference between a sheet and a halyard?
What does the keel prevent?
What supports the mast from the sides?
Where is the rudder located?
